COMPILER FAMILY · HIGH PULSE REPETITION RATE
12 kHz Picosecond DPSS Laser
Compiler HPRR is a 12 kHz high-pulse-repetition-rate picosecond DPSS laser available at 1064, 532, 355 and 266 nm. At 1064 nm, it delivers up to 200 µJ per pulse with an 8 ps pulse width while preserving diffraction-limited beam quality. Its high repetition rate supports increased throughput in wafer processing, precision micro- and nanomachining, semiconductor scribing, photomask fabrication and remote sensing.
TECHNICAL DATA
| Wavelength | 1064 nm | 532 nm | 355 nm (optional) | 266 nm (optional) |
|---|---|---|---|---|
| Energy output (at 12 kHz) | 200 µJ | 100 µJ | 35 µJ | 20 µJ |
| Pulse width | 8 ps | 7 ps | 6 ps | 5 ps |
| Repetition rate | 12 kHz, fixed at factory | |||
| Q-switch | Passive | |||
| Beam quality | Diffraction limited | |||
| Beam profile | TEM₀₀ Gaussian | |||
| Pulse-to-pulse standard deviation | 3% @1064 nm, optional upon request | |||
| Output beam pointing stability (std. dev., 1 hour) | ~0.5 diffraction limit | |||
| External control | Connector for TTL trigger input port (4 ±1 V, 1 kΩ) | |||
| Electrical power | ~100–240 VAC, 47–63 Hz, single phase | |||
| Power consumption | < 300 W | |||
| Warm-up time | Less than 5 minutes | |||
| Operating temperature and humidity | 18–25 °C; 10–85% | |||
* Request Compiler HPRR Upgrade for a more powerful output.

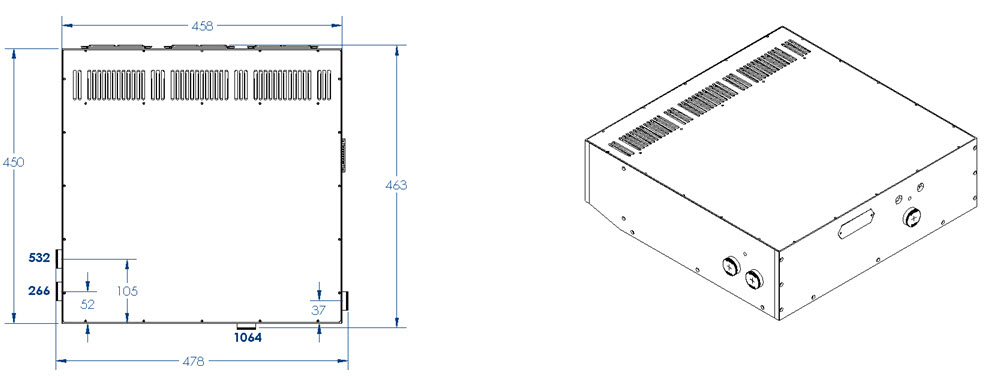

MECHANICAL DATA
Typical dimensions only. Final dimensions may change depending on the requested configuration and options.

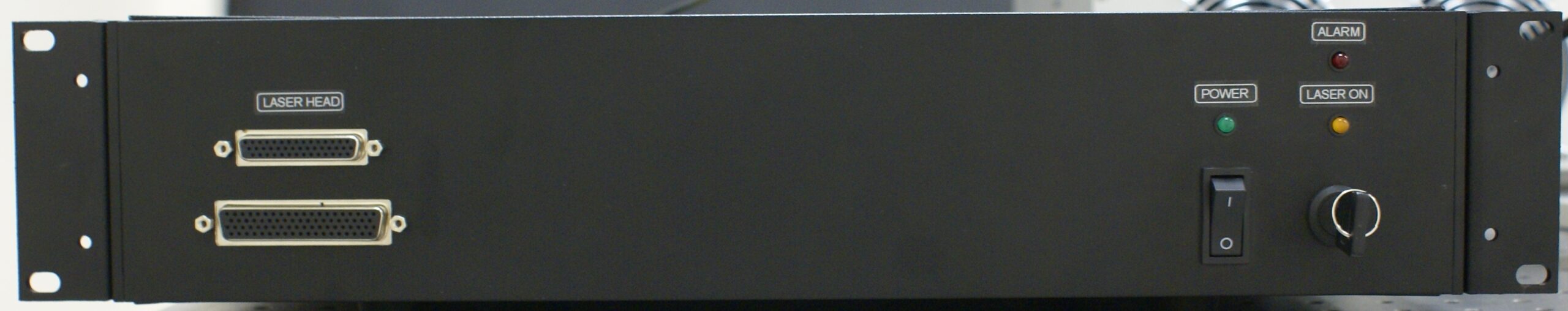

POWER UNIT

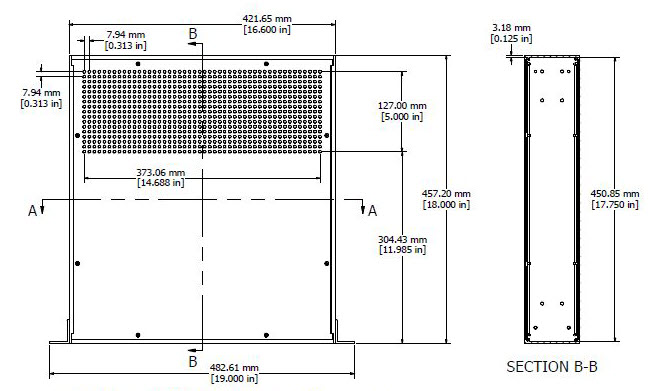

POWER UNIT MECHANICAL DATA
