Compact diode-pumped solid-state laser systems from picosecond sources to rugged sub-nanosecond platforms.

PICOSECOND DPSS LASERS

Compiler Family

The Compiler family provides short picosecond pulses, high peak power and wavelength configurations from infrared to deep ultraviolet.

Select a product to open the dedicated product page with complete technical details.

Air-cooled picosecond DPSS laser

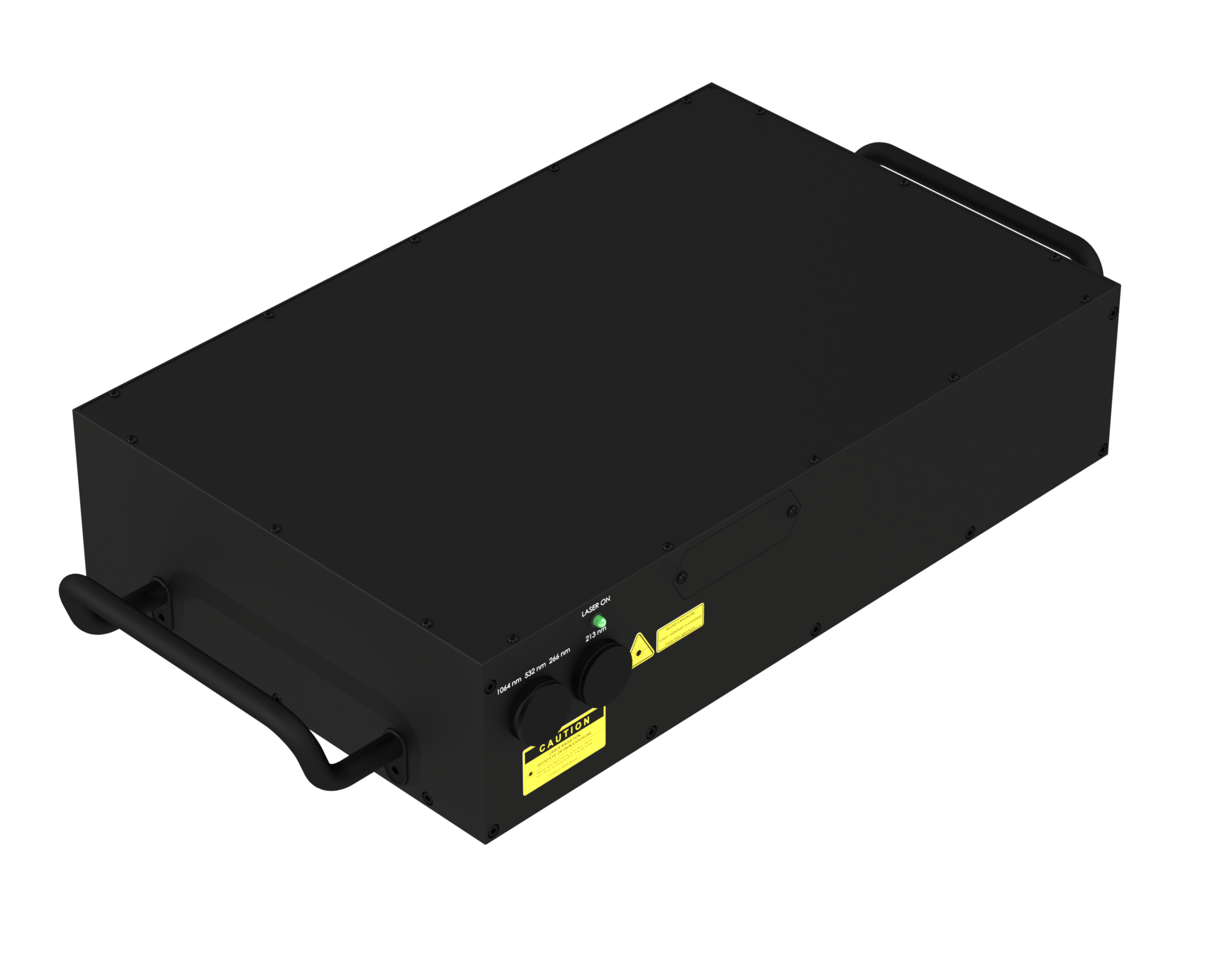

Compiler

Compact air-cooled picosecond platform with harmonic outputs extending from 1064 nm to 213 nm.

↗

Output wavelength	Pulse energy	Pulse per second	Peak power	Pulse length	Pumping	Cooling
1064 nm	0.5 mJ	1000	62 MW	8 ps	Diode	Air
532 nm	0.25 mJ	1000	35 MW	7 ps	Diode	Air
355 nm	0.13 mJ	1000	21 MW	6 ps	Diode	Air
266 nm	0.08 mJ	1000	16 MW	5 ps	Diode	Air
213 nm	0.05 mJ	1000	10 MW	5 ps	Diode	Air

High-energy picosecond DPSS laser

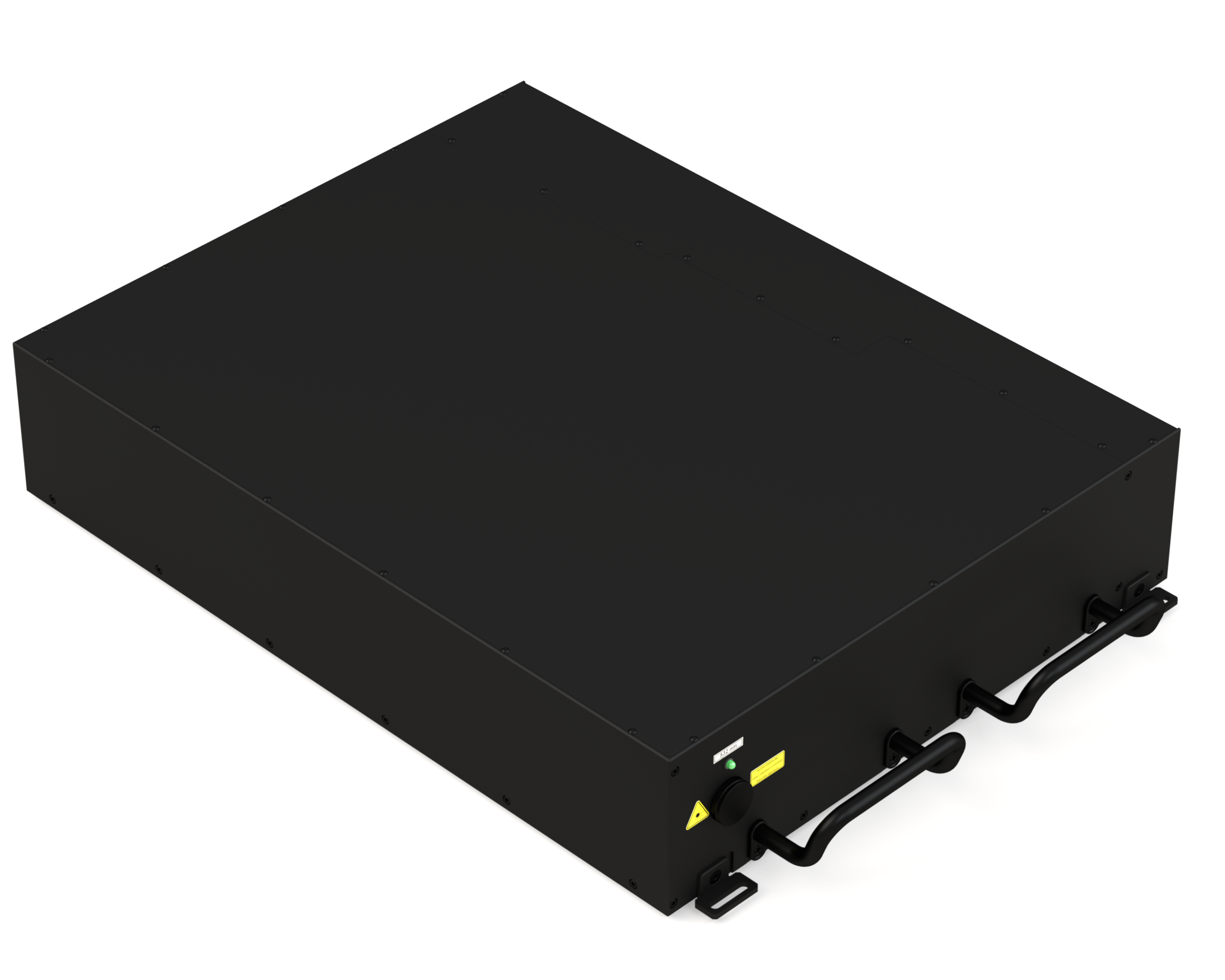

Compiler Upgrade

Higher pulse energy and peak power with air or liquid cooling for demanding precision-processing applications.

↗

Output wavelength	Pulse energy	Pulse per second	Peak power	Pulse length	Pumping	Cooling
1064 nm	1.5 mJ	1000	187 MW	8 ps	Diode	Air or liquid
532 nm	0.8 mJ	1000	114 MW	7 ps	Diode	Air or liquid
355 nm	0.4 mJ	1000	66 MW	6 ps	Diode	Air or liquid
266 nm	0.2 mJ	1000	40 MW	5 ps	Diode	Air or liquid
213 nm	0.15 mJ	1000	30 MW	5 ps	Diode	Air or liquid

High-pulse-repetition-rate picosecond laser

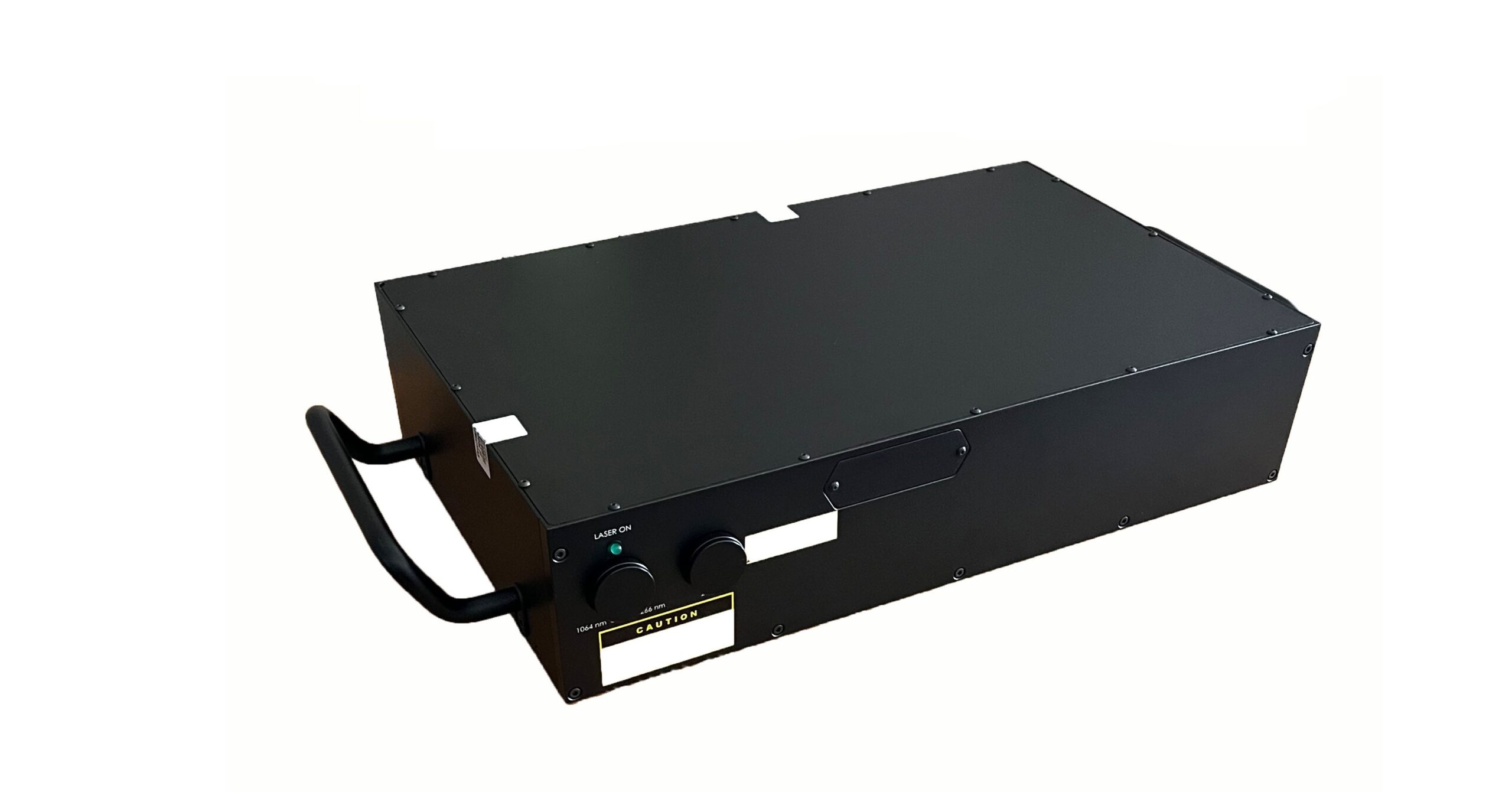

Compiler HPRR

High-repetition-rate picosecond source for applications requiring increased throughput while retaining short pulses.

↗

Output wavelength	Pulse energy	Pulse per second	Peak power	Pulse length	Pumping	Cooling
1064 nm	0.2 mJ	12000	25 MW	8 ps	Diode	Air
532 nm	0.1 mJ	12000	14 MW	7 ps	Diode	Air
355 nm	0.035 mJ	12000	6 MW	6 ps	Diode	Air
266 nm	0.020 mJ	12000	4 MW	5 ps	Diode	Air

High-energy picosecond laser

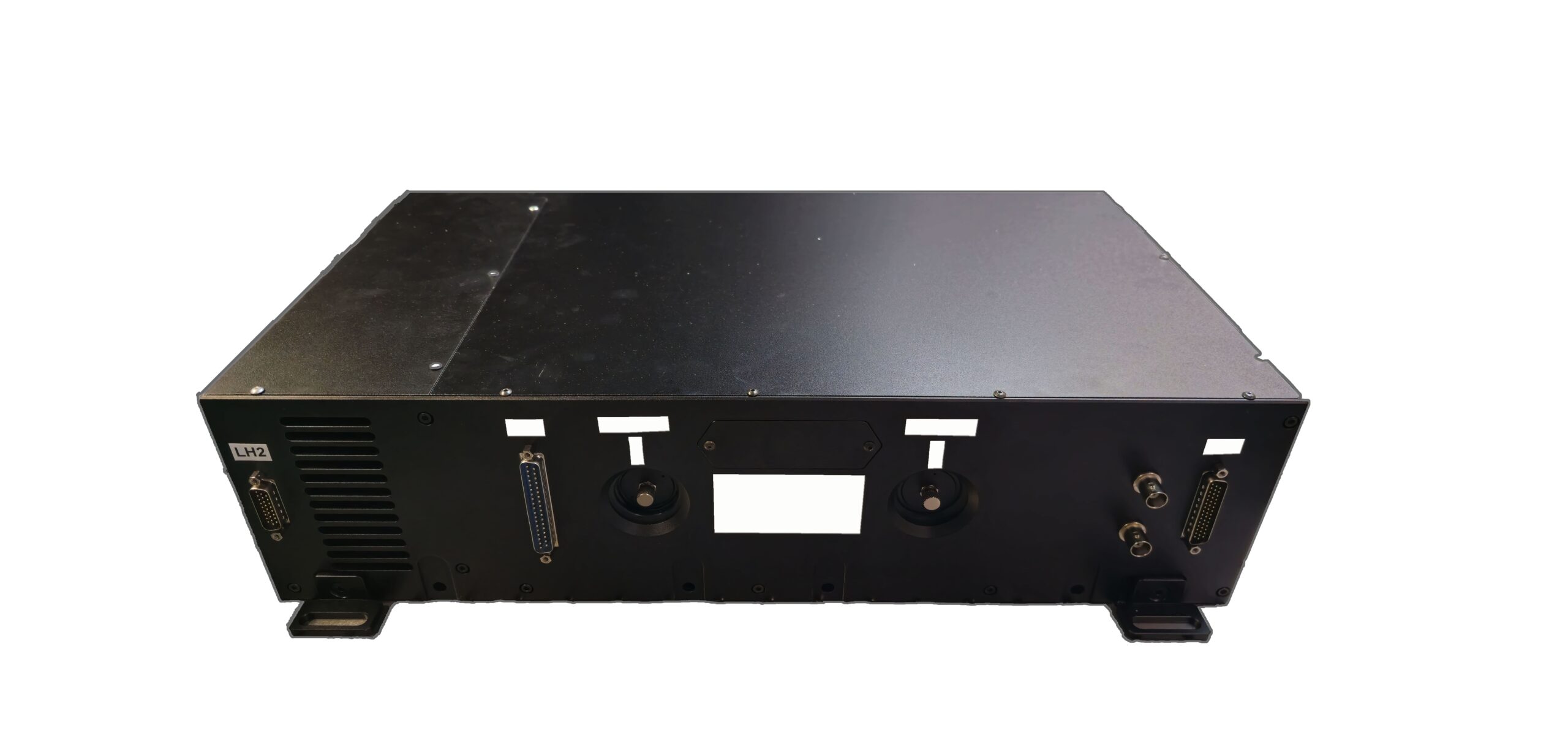

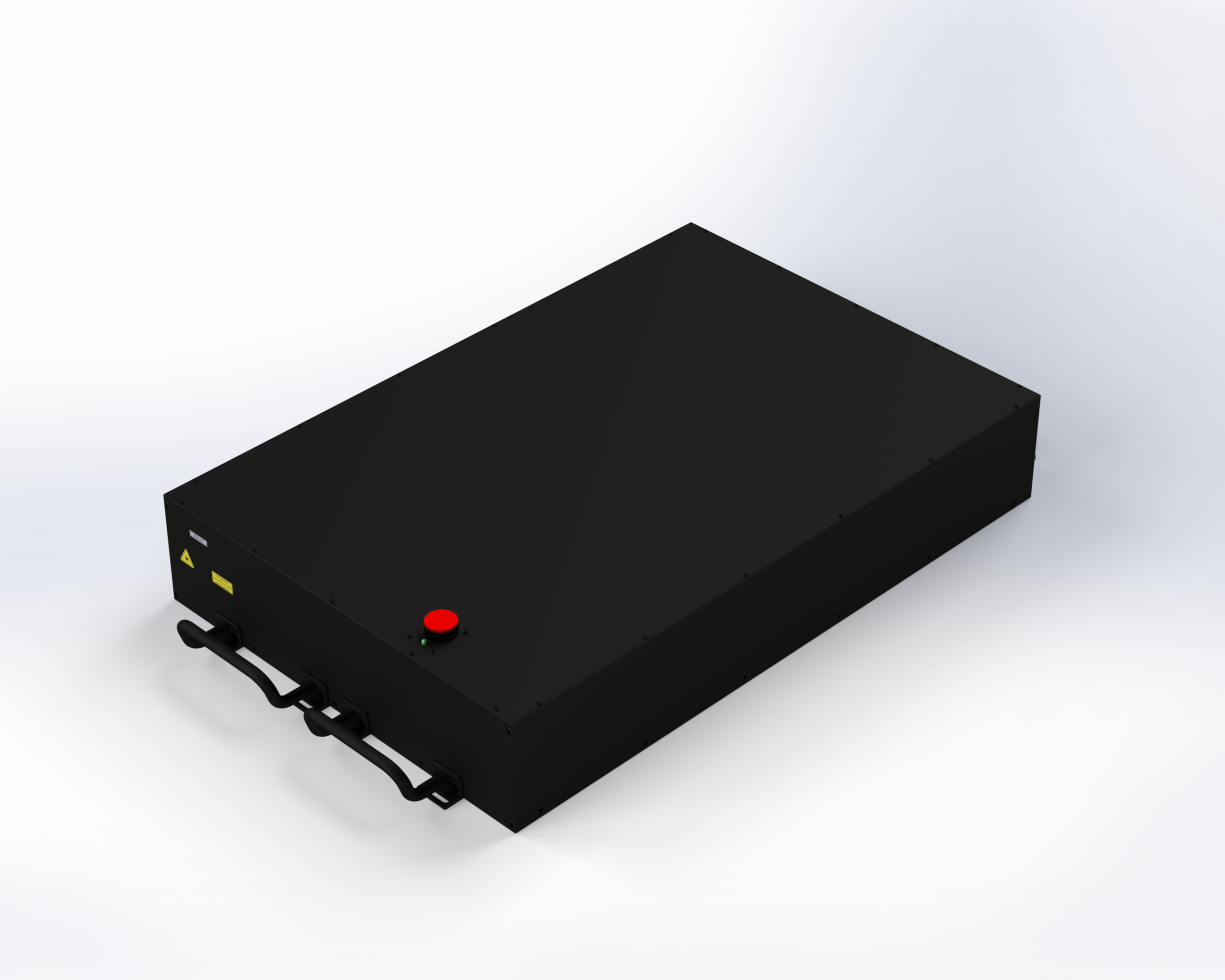

Compiler CPS

High-energy picosecond platform operating at 200 pulses per second with outputs from infrared to deep ultraviolet.

↗

Output wavelength	Pulse energy	Pulse per second	Peak power	Pulse length	Pumping	Cooling
1064 nm	12 mJ	200	120 MW	100 ps	Diode	Air or liquid
532 nm	6 mJ	200	66 MW	90 ps	Diode	Air or liquid
355 nm	3 mJ	200	35 MW	85 ps	Diode	Air or liquid
266 nm	2 mJ	200	28 MW	70 ps	Diode	Air or liquid
213 nm	1 mJ	200	16 MW	60 ps	Diode	Air or liquid

PORTABLE SUB-NANOSECOND DPSS LASERS

Sub-Nano Family

The Sub-Nano family uses approximately 0.3–0.6 ns pulses in rugged, compact and lightweight laser platforms.

These systems are designed for portable instrumentation, field measurements, spectroscopy, remote sensing and OEM integration.

High-energy sub-nanosecond DPSS laser

Sub-Naples

OPEN PRODUCT PAGE ↗

Output wavelength	Pulse energy	Maximum repetition rate	Pulse length	Pumping	Cooling
1064 nm	0.45 (0.95) mJ	1000 Hz	≤ 0.6 ns	Diode	Air
532 nm	0.2 (0.5) mJ	1000 Hz	≤ 0.55 ns	Diode	Air
355 nm	0.1 (0.17) mJ	1000 Hz	≤ 0.5 ns	Diode	Air
266 nm	0.07 (0.12) mJ	1000 Hz	≤ 0.45 ns	Diode	Air

Compact sub-nanosecond DPSS laser

Sub-Naples Mini

OPEN PRODUCT PAGE ↗

Output wavelength	Pulse energy	Maximum repetition rate	Pulse length	Pumping	Cooling
1064 nm	0.1 mJ	1000 Hz	0.45 ns	Diode	Air
532 nm	0.05 mJ	1000 Hz	0.4 ns	Diode	Air
355 nm	0.015 mJ	1000 Hz	0.3 ns	Diode	Air

Miniature passive-head OEM laser

Sub-Naples Micro

OPEN PRODUCT PAGE ↗

Output wavelength	Pulse energy	Maximum repetition rate	Pulse length	Pumping	Cooling
1064 nm	0.045 mJ	Up to 2000 Hz	0.45 ns	Diode	Air
532 nm	0.02 mJ	Up to 2000 Hz	0.40 ns	Diode	Air

BEYOND LASER SALES

Rental and micromachining services

Passat also provides laser rental options and precision micromachining services for customers who need temporary access to a laser or want us to perform process development and sample machining.

LASER RENTAL

Rent a Passat laser system

Selected Passat laser systems are available for short-term research, process development, evaluation and temporary production needs.

MICROMACHINING SERVICES

Micromachining services

We provide precision laser micromachining, including micro-drilling, cutting, selective material removal and process development for advanced materials.

WHAT OUR LASERS CAN DO ↗

SELECT THE RIGHT CONFIGURATION

Need help choosing a laser?

Tell us the material, wavelength, pulse-energy range and application requirements.
